Simplicity

Displacement ventilation systems are a preferred air distribution method for school applications. Indoor air quality, silent operation, architectural options and thermal comfort are all important design considerations for schools.

But if you’re unfamiliar with specifying or designing with displacement ventilation, another important consideration is understanding the layout and HVAC system needs as compared to a traditional mixing system.

If you need additional support with your displacement design, Price is happy to help. Contact us at [email protected] or call 1-204-654-5613 Option 7.

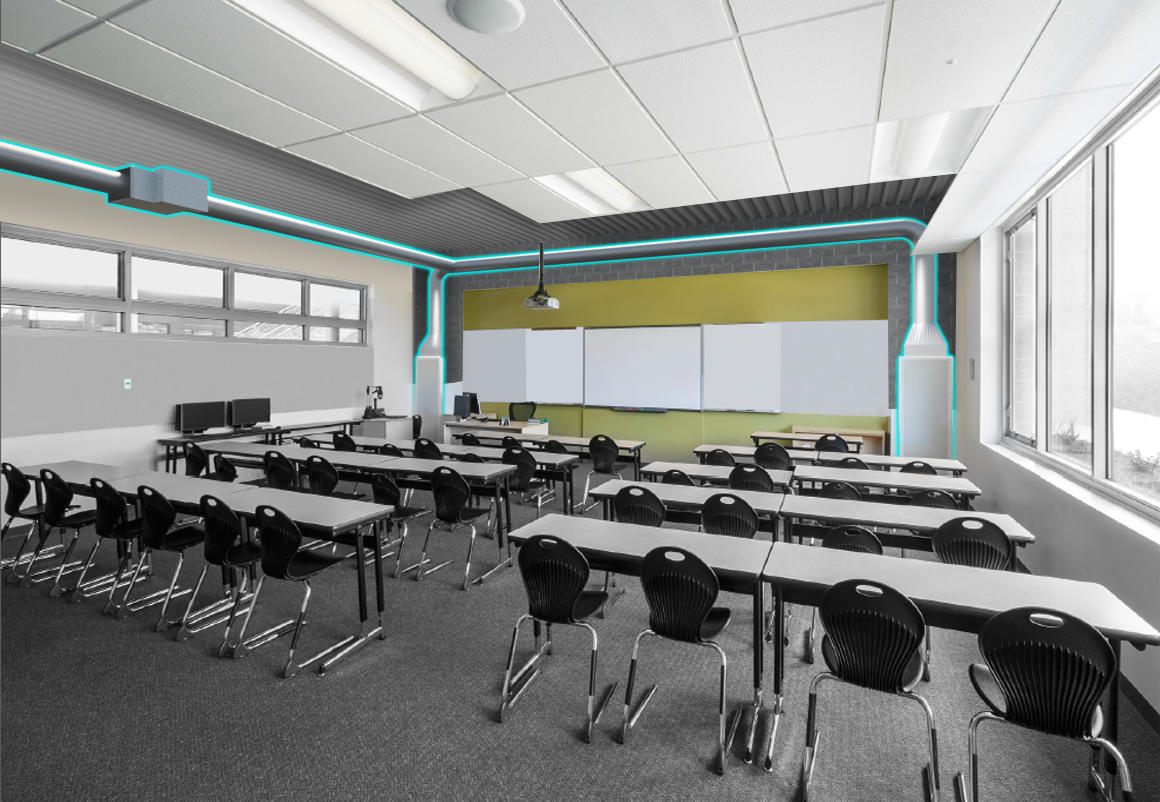

These images compare a classroom with DV products from one of our middle school projects with a version of the same image with revealed ducting.

EFFECTIVENESS

Proving the point

In 2022, we investigated how displacement ventilation systems and traditional HVAC systems differ in how they manage particle distribution in a space. At the Price Research Center North (PRCN), we installed a particle generator that produces particle sizes ranging from 0.3 μm (bacteria and smoke) to 10 μm (dust, mold and pollen) and measured the average particle count at seated height for three occupants (43 in.).

When we introduced a displacement ventilation system, the average particle count showed a 64% reduction compared to a traditional system.

Why does this matter? Fewer particles over time means less exposure to airborne pollutants of a similar size. This is a priority for decision-makers and designers who want to create safer environments in schools and other occupied spaces.

Read the study entitled Reducing Airborne Particulates Using Displacement Ventilation, which was featured in the December 2022 edition of ASHRAE Journal for more information.

Air Change Effectiveness in the Breathing Zone

This chart shows the effectiveness of a displacement ventilation system at reducing particles in the air as compared to a traditional (mixed) ventilation system.

Air Quality vs Air Distribution

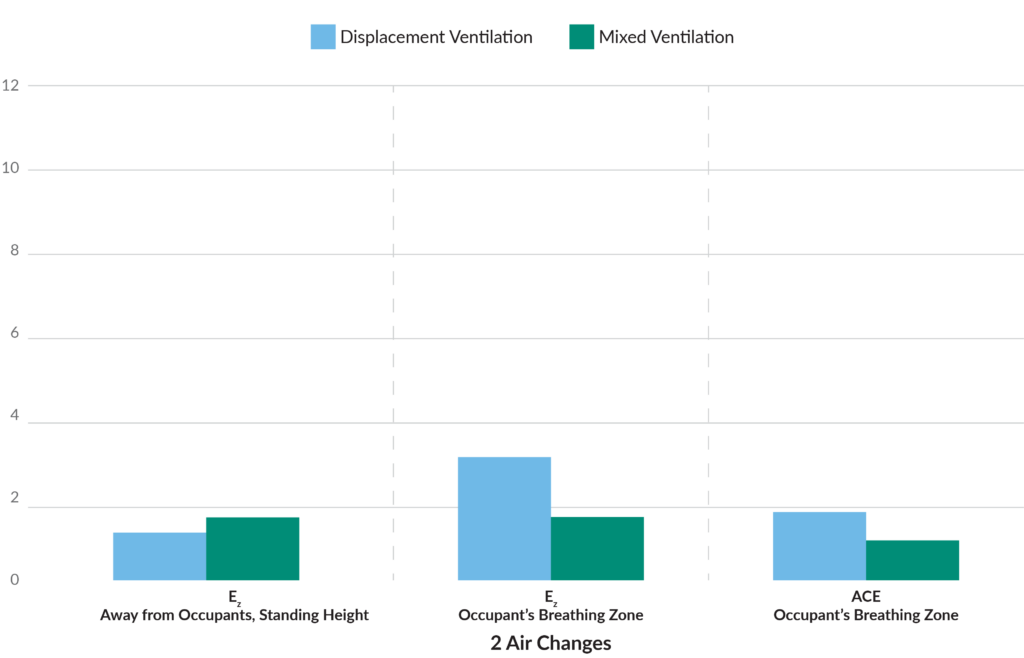

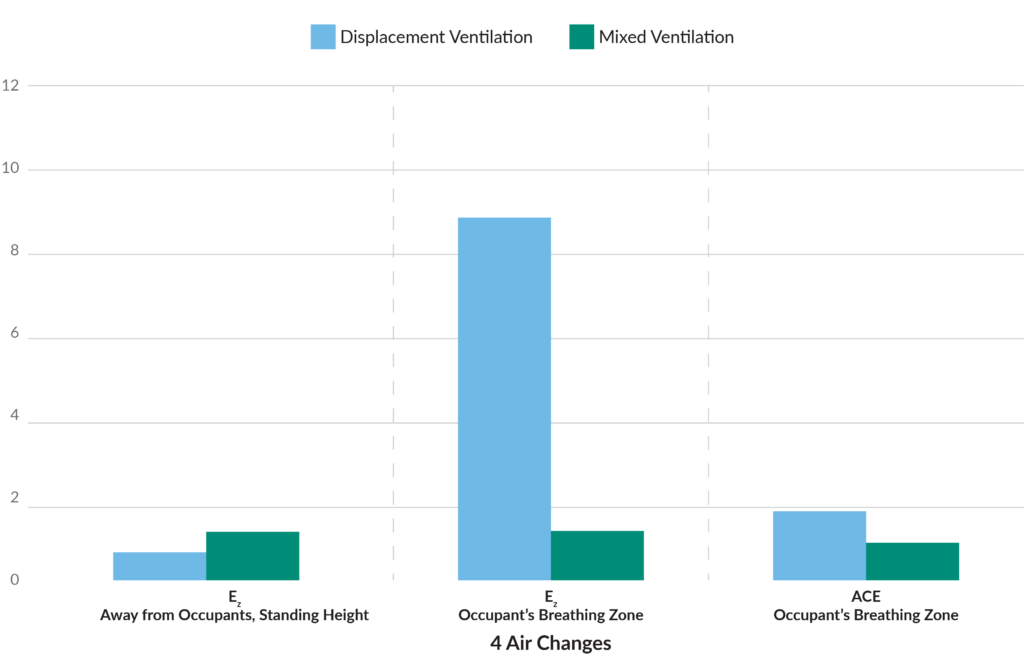

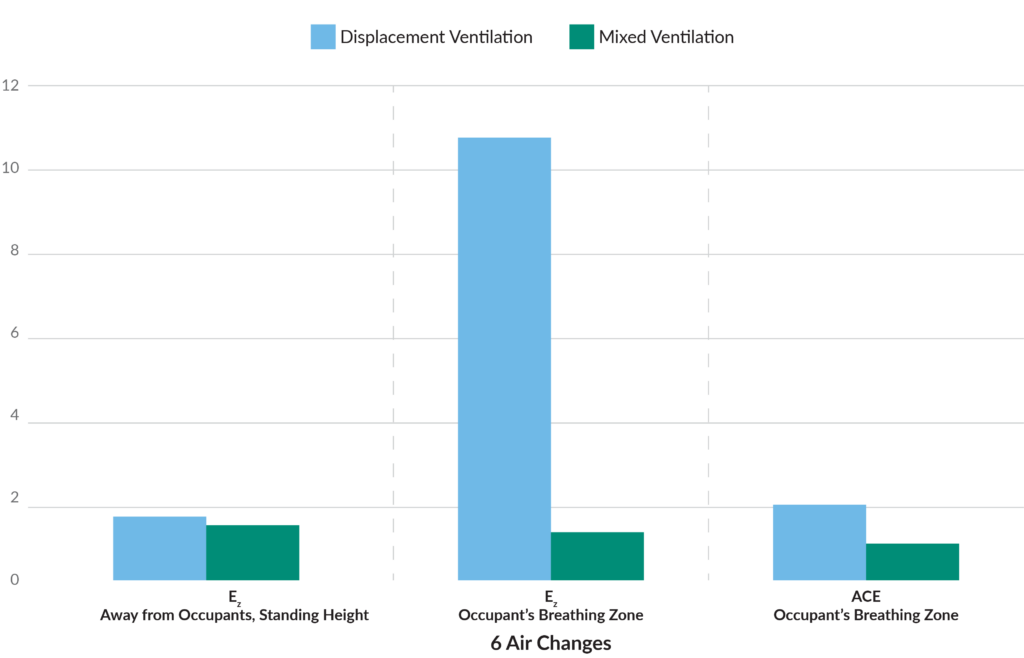

The series of charts below show that air change effectiveness (ACE) between displacement and mixed ventilation systems matches the industry standard while the air distribution effectiveness (Ez air quality) is much better for occupants in a displacement system.

Products

DFW

Displacement Flow In-Wall Diffuser

Learn more

DFR

Displacement Flow Recessed Diffuser

Learn more

DFE

Exposed Displacement Diffuser

Learn more

DFC

Displacement Flow Ceiling Diffuser

Learn more

DF1L-HC

1 Way Lay-In Diffuser With Heat-Cool Changeover

Learn more

DR360

Full Round 360° Displacement Diffuser

Learn more

DR360-DH

Full Round 360° Duct Hung Displacement Diffuser

Learn more

DR180

Half Round 180° Displacement Diffuser

Learn more

DR180U

Half Round 180° Displacement Diffuser - U-Shaped

Learn more

DR90

Quarter Round 90° Displacement Diffuser

Learn more
